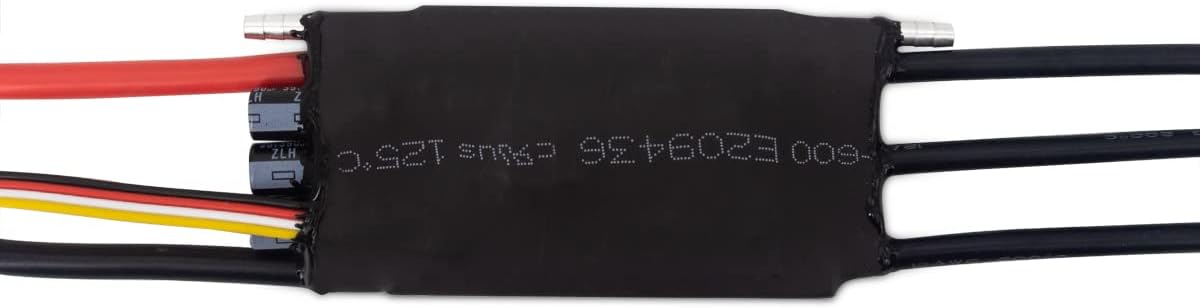

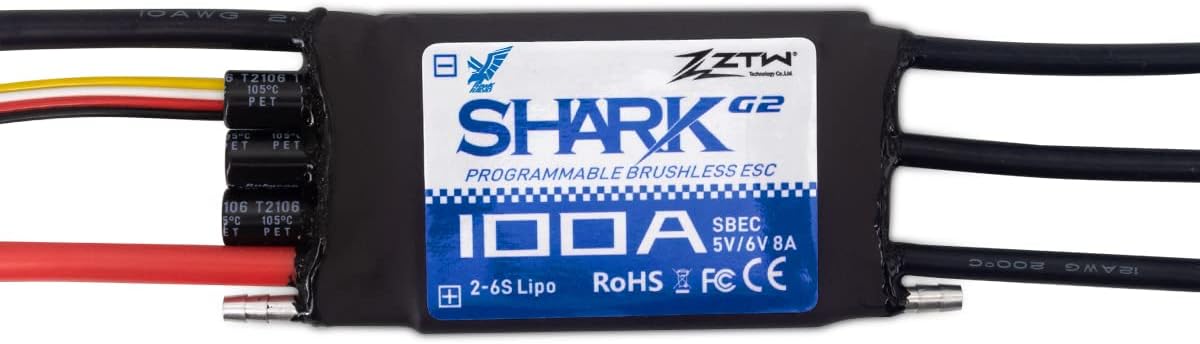

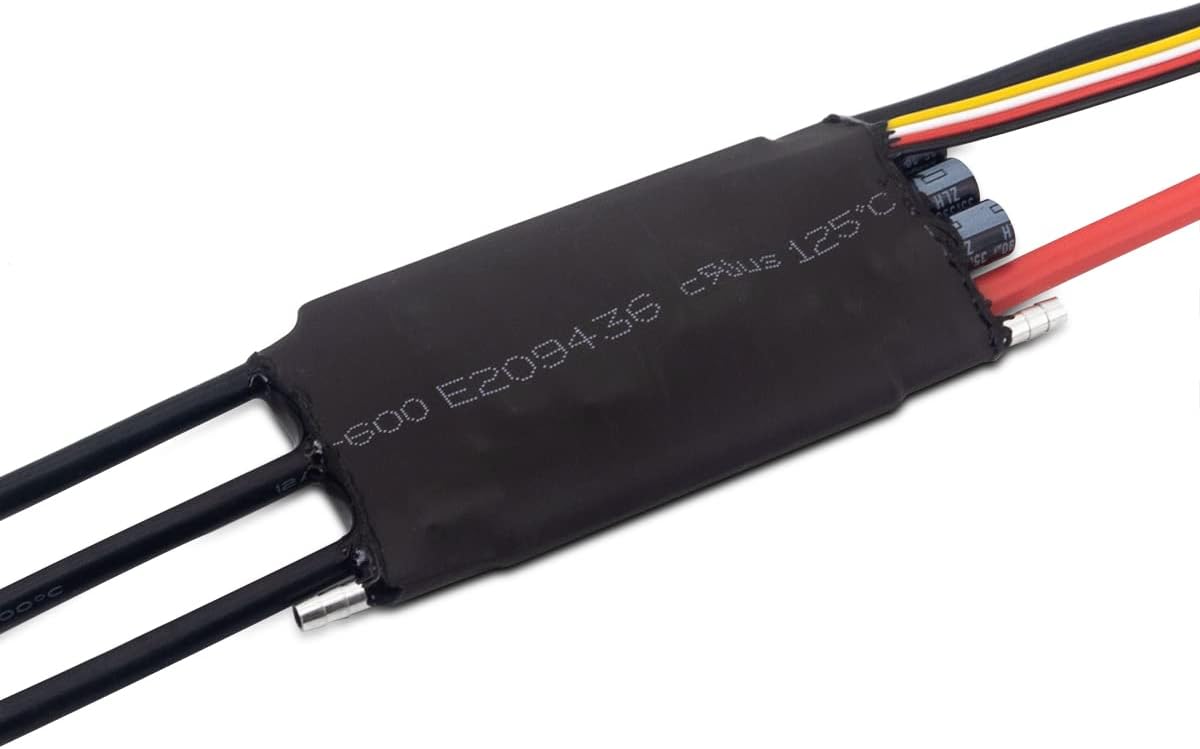

ZTW Shark G2 Series 100A Bi-Direction Water Cooling Brushless ESC with SBEC 8A/5V for RC Boat and Other DIY Project
4.9 (135 items)
Limited Time SaleUS$28.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 225319055 | Release Date | 2026/05/09 | List Price | US$19.20 | Model Number | 225319055 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description: Size:96mm x 44mm x 13mm / 3.8in x1.73 in x 0.51in (LxWxH). Battery: 2-6S Lipo / 5-18NC. Voltage: 7.6V-24V. Current:100A ,peak 120A for 10 seconds. BEC output: 8A/5V, peak 10A Weight:100g. Motor Rotation:Bi-Direction Motor Type: Brushless (no brushed) RPM support：200,000 for 2 P ,82,000 for 6 P,42,000 for 12 P. Package includes: ESC x 1 User Manual x 1 Application: 1>Work with RC boat inrunner motor. 2>Cooperate with Underwater thruster engine for RC Bait Tug Boat ROV Submarine. Note !! Q :How to make the throttle calibration : A :If need reverse/bidirection , first put sticker in natural position ,then power on ESC , After beep ,put sticker to MAX position,after beep again ,to MINIMAN position.then power off esc and restart it. B : If do not need reverse ,how to make the throttle calibration : Firstly ,put sticker in MAX position ,power on ESC ,after beep , Put sticker to MINIMUN position ,after beep again,repower ESC. Please do make the throttle calibration for the first time using or changed the TX. ZTW and HAWK HOBBY have 100% free warranty for this ESC.
- Super smooth, accurate and programmable throttle linearity and throttle response.
- Over temperature protection ,low voltage cut off protection ,signal loss protection and so on.
- Strong BEC output 8A/5V continuous and peak to 10A.
- Supporting high RPM motors and LCD programmable by programming card and transmitter.
- High efficiency with low resistance and low heat MOSFET and 32bit CPU.
| UPC | 770523574783 |
|---|---|
| ASIN | B0B5QLXW3B |
| Size | 96mm x 44mm x 13mm / 3.8in x1.73in x 0.51in |
| Color | Black |
| Theme | Sport |
| Set Name | Shark G2 Series |
| Brand Name | ZTW |
| Model Name | Rc Boat ESC |
| Unit Count | 1.0 Count |
| Item Weight | 0.2 Pounds |
| Manufacturer | ZTW |
| Power Source | Battery Powered |
| Material Type | Metal |
| Operation Mode | Remote Control |
| Item Dimensions | 4 x 2 x 1 inches |
| Number of Items | 1 |
| Toy Vehicle Form | Boat |
| Additional Features | Portable |
| Battery Description | Lithium-Ion Polymer |
| Included Components | ESC, User Manual, Remote Controller, Battery |
| Is Assembly Required | No |
| Age Range Description | Youth |
| Are Batteries Required | Yes |
| Batteries are Included | No |
| Manufacturer Part Number | 20220728032 |
| Manufacturer Maximum Age MONTHS | 666 |
| Manufacturer Minimum Age MONTHS | 266 |
