WITC Precision 2.4 mm Female to 3.5 mm Male RF Coax Adapter Dc to 30 GHz High Frequency Coaxial Adapter 50 Ohm Stainless Steel VSWR 1.20 for RF Equipment Coax Cable Wireless LAN Radio Devices
4.5 (138 items)
Limited Time SaleUntil the end
11
47
57
US$53.99 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$36.00
Product details
| Management number | 220180696 | Release Date | 2026/05/03 | List Price | US$36.00 | Model Number | 220180696 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

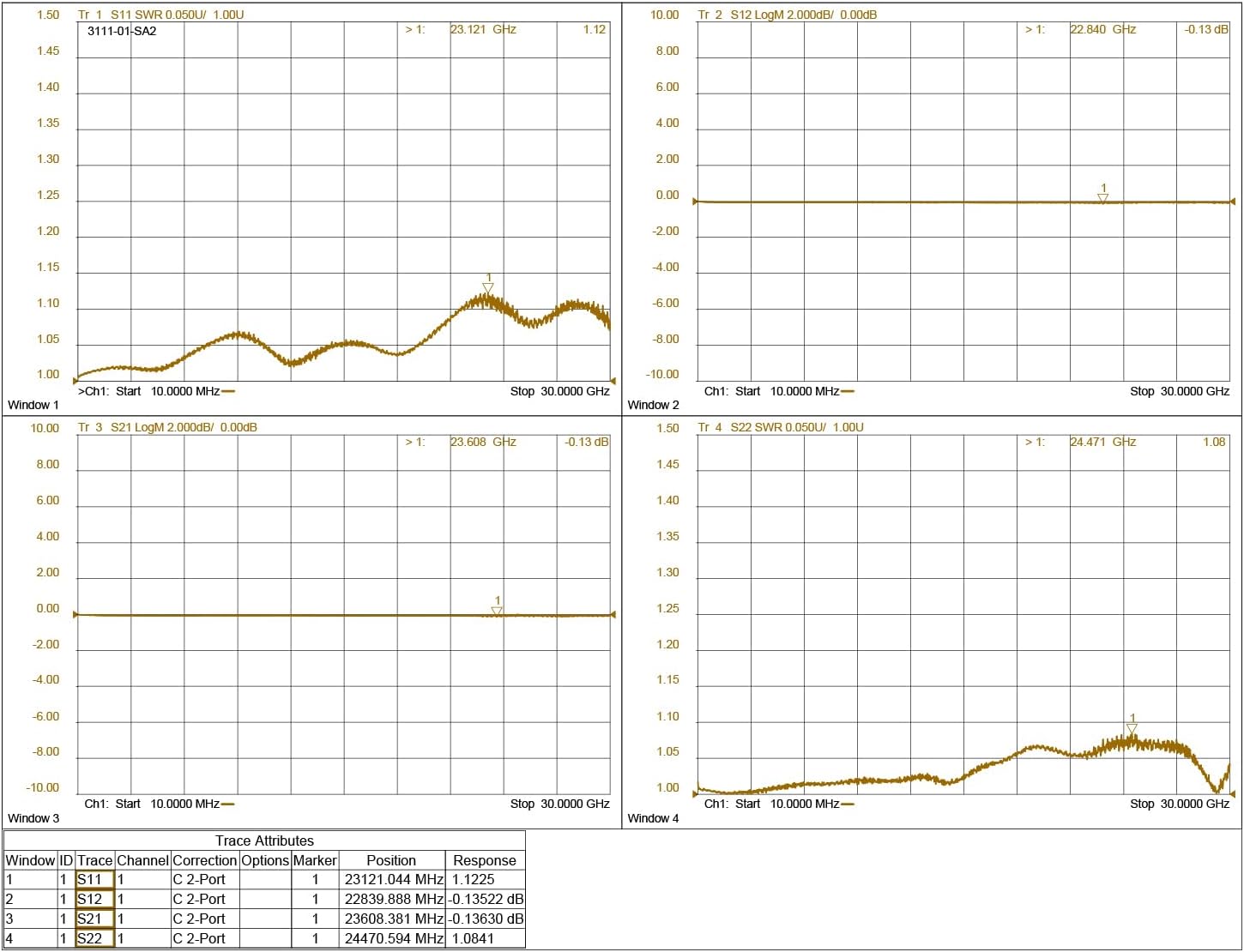

- [Adapter Specifications] Impedance: 50Ω.Frequency range: DC-30GHz.VSWR: 1.20(Max).Insertion loss: ≤0.05 x SQRT (f(GHz))dB.Center contact resistance (2.4 mm) : ≤4.0 mΩ.Outer contact resistance (2.4 mm) : ≤2.5 mΩ.Center contact resistance (3.5 mm) : ≤3.0 mΩ.Outer contact resistance (3.5 mm) : ≤2.0 mΩ.Dielectric withstanding voltage: 500 V rms.
- [Mechanical Data/Environmental Data]Connector durability: ≥500.Coupling test torque(2.4 mm): 1.65Nm.Recommended torque(2.4 mm): 0.8Nm~1.1Nm.Coupling test torque(3.5 mm): 1.70Nm.Recommended torque(3.5 mm): 0.8Nm~1.1Nm.Operating temperature: -65℃ to 85℃.Temperature resistance: 185℃.
- [Quality Advantage] High-quality stainless steel and other materials guarantee product durability,service life,reliability,and stability in diverse applications.
- [Core Material] The material of the central conductor is beryllium bronze,and its surface plating is gold plated.The material of the outer conductor is stainless steel,and its surface plating is passivated.The material of the insulator is polyetherimide.
- [High-frequency Millimeter-wave Adapter Low Loss] WITC rf coax adapter aim to minimize signal loss,which is crucial for maintaining the integrity of high-frequency signals.Microwave rf coaxial adapters are constructed with materials and design techniques that minimize insertion loss and ensure efficient transmission.
| Item Weight | 0.115 ounces |
|---|---|
| Manufacturer | WITC |
| Item model number | 2.4/3.5-KKG2 |
| Product Dimensions | 0.71 x 0.33 x 0.33 inches |
